Type: Splitterbombe SD 0.5
Bomb weight: 0.498 kg
Explosive weight: 0.031 kg
Explosive filling:
Fuze type: mechanical impact fuze
Length: 108 mm
Diameter: 36.5 mm
Type: Splitterbombe SD 1 frz
Bomb weight: 0.52 kg
Explosive weight: 0.06 kg
Explosive filling: Fp 20/80
Fuze type: mechanical AZ diaphragm impact fuze
Length: 160 mm
Diameter: 50 mm
Type: Splitterbombe SD 1
Bomb weight: 0.76 kg
Explosive weight: 0.11 kg
Explosive filling: Fp 60/40
Fuze type: mechanical AZ diaphragm impact fuze
Length: 170 mm
Diameter: 50 mm
Type: Splitterbombe SD 1 Ex
Bomb weight: 0.76 kg
Explosive weight: kg
Explosive filling: Fp 60/40
Fuze type: mechanical AZ diaphragm impact fuze
Length: 170 mm
Diameter: 50 mm
Type: Splitterbombe SD 2 it
Bomb weight: 1.9 kg
Explosive weight: 0.22 kg
Explosive filling: Tritolo
Fuze type: mechanical impact fuze
Length: 135 mm
Diameter: 70 mm

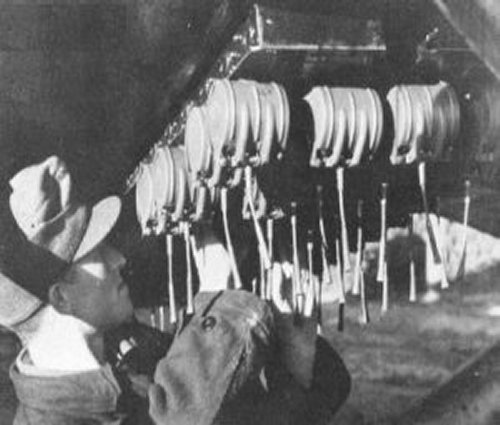

Type: Splitterbombe SD 2
Bomb weight: 2.0 kg
Explosive weight: 0.225 kg
Explosive filling: Fp 60/40
Fuze type: mechanical LZtz time fuze
Length: 200 mm
Diameter: 76 mm
Type: Splitterbombe SD 3
Bomb weight: 3.2 kg
Explosive weight: 0.55 kg
Explosive filling: Fp 60/40
Fuze type: mechanical AZ diaphragm impact fuze
Length: 305 mm
Diameter: 100 mm
Type: Splitterbombe SD 4 HL
Bomb weight: 4 kg
Explosive weight: 0.31 kg
Explosive filling: Fp 02 and Hexogen
Fuze type: super fast impact fuze
Length: 310 mm
Diameter: 90 mm
Type: Splitterbombe SD 9
Bomb weight: 9 kg
Explosive weight: 0.8 kg
Explosive filling: Fp 60/40
Fuze type: super fast eAZ impact fuze
Length: 578 mm
Diameter: 89 mm
Type: Splitterbombe SC 10
Bomb weight: 10 kg
Explosive weight: 0.9 kg
Explosive filling: Fp 60/40
Fuze type: AZ C-10 mechanical impact fuze
Length: 584.5 mm
Diameter: 120 mm
Type: Splitterbombe SC 10 dw
Bomb weight: 10 kg
Explosive weight: 0.9 kg
Explosive filling: Fp 60/40
Fuze type: AZ C-10 mechanical impact fuze
Length: 584.5 mm
Diameter: 120 mm
Type: Splitterbombe SD 10 A
Bomb weight: 10 kg
Explosive weight: 0.9 kg
Explosive filling: Fp 60/40
Fuze type: super fast impact fuze
Length: 545 mm
Diameter: 120 mm
Type: Splitterbombe SD 10 C
Bomb weight: 8 kg
Explosive weight: 0.75 kg
Explosive filling: Fp 60/40
Fuze type: super fast impact fuze
Length: 545 mm
Diameter: 106 mm
Type: Splitterbombe SD 10 frz
Bomb weight: 9.5 kg
Explosive weight: 1.25 kg
Explosive filling: MMN 70/30
Fuze type: nose fuse
Length: 636 mm
Diameter: 140 mm
Type: Splitterbombe SD 10 HL
Bomb weight: 10 kg
Explosive weight: kg
Explosive filling:
Fuze type: super fast eAZ impact fuze
Length: 350 mm
Diameter: 118 mm
Type: Splitterbombe SD 15
Bomb weight: 15 kg
Explosive weight: 1.75 kg
Explosive filling: Fp 60/40
Fuze type: super fast eAZ impact fuze
Length: 637 mm
Diameter: 147 mm
Type: Splitterbombe SD 20 c V
Bomb weight: 19.9 kg
Explosive weight: 2.5 kg
Explosive filling: Tritolo
Fuze type: mechanical duplex fuze
Length: 778 mm
Diameter: 143 mm
Type: Splitterbombe SD 50
Bomb weight: 54 kg
Explosive weight: 16 kg
Explosive filling: Fp 60/40 or Amatol 39
Fuze type: super fast eAZ impact fuze or AZ electrical
impact fuze
Length: mm
Diameter: mm
Type: Splitterbombe SBe 50 E
Bomb weight: 60 kg
Explosive weight: 5.5 kg
Explosive filling: Ammonal
Fuze type: El.AZ electrical impact fuze
Length: 1,100 mm
Diameter: 280 mm
Type: Splitterbombe SD 50 it
Bomb weight: 50 kg
Explosive weight: 29.2 kg
Explosive filling: Tritolo, S 20
Fuze type: mechanical tail fuze
Length: 1,029 mm
Diameter: 252 mm
Type: Splitterbombe SD 50 frz
Bomb weight: 57 kg
Explosive weight: 19.4 kg
Explosive filling:
Fuze type: nose fuze
Length: 1,241 mm
Diameter: 260 mm
Type: Splitterbombe SD 70
Bomb weight: 66 kg
Explosive weight: 24 kg
Explosive filling: Fp 60/40
Fuze type: El.AZ electrical impact fuze or eAZ super
fast impact fuze
Length: 1,090 mm
Diameter: 240 mm
Type: Splitterbombe SD 100 it
Bomb weight: 109 kg
Explosive weight: 27.3 kg
Explosive filling: Tritolo S 20
Fuze type: mechanical tail fuze
Length: 1,260 mm
Diameter: 254 mm
Type: Splitterbombe SD 200 frz
Bomb weight: 225 kg
Explosive weight: 107 kg
Explosive filling: MMN
Fuze type: nose fuze
Length: 1,682 mm
Diameter: 370 mm
Type: Splitterbombe SD 250
Bomb weight: 250 kg
Explosive weight: 80 kg
Explosive filling: Fp 60/40 or Amatol 39
Fuze type: El.AZ electrical impact fuze or eAZ super
fast impact fuze
Length: 1,638 mm
Diameter: 512 mm
Type: Splitterbombe SBe 250
Bomb weight: 229 kg
Explosive weight: 12 kg
Explosive filling: Fp 60/40 or Amatol 39
Fuze type: El.AZ electrical impact fuze or eAZ super
fast impact fuze
Length: 1,637 mm
Diameter: 512.2 mm
Type: Splitterbombe SD 250 HL
Bomb weight: 250 kg
Explosive weight: kg
Explosive filling:
Fuze type:
Length: 1,600 mm
Diameter: 512 mm
Type: Splitterbombe SD 500
Bomb weight: 457 kg
Explosive weight: 180 kg
Explosive filling: Fp 60/40
Fuze type: El.AZ electrical impact fuze
Length: 2007 mm
Diameter: 396 mm
Type: Splitterbombe SD 1700
Bomb weight: 1,784 kg
Explosive weight: 720 kg
Explosive filling: Fp 60/40
Fuze type: El.AZ electrical impact fuze
Length: 3,300 mm
Diameter: 660 mm
Other: Air-Dropped
Weapons
Articles:
Splinter or fragmentation bomb / Splitterbombe The Splitterbombe
SC 10 was a splinter or fragmentation bomb used against people
and unarmoured targets.
